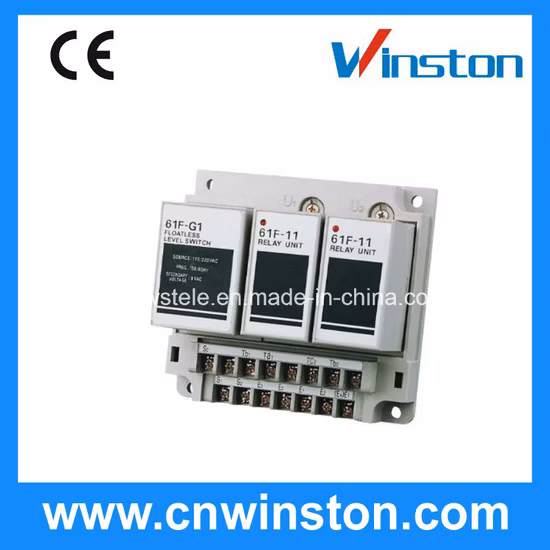

61f-G1 Electrical Digital Multi-Function Liquid Level Control Floatless Relay
Product Description 1. Easy maintenance with building-block Relay Units. 2.Easy identification of operating status with
Basic Info
| Model NO. | 61F-G1 |
| Protective Characteristics | Sealed Relay |
| Action Principle | Electronic Type |
| Size | Miniature |
| Type | Electric Parameter Relay |
| Brand | Winston |
| Dimensions(mm) | 79.5h *84W * 127D |
| Weight | 380g |
| Ambient Huminity | 48~85%Rh |
| Consumed Power | 3.2va |
| Connection Diagrams | 35D |
| Transport Package | Export Standard Carton Box or ODM |
| Specification | CE |
| Trademark | Winston/OEM/Neutral |
| Origin | China, Zhejiang, Wenzhou |
| HS Code | 8536411000 |
| Production Capacity | 10000PCS/Week |
Product Description
Product Description
1. Easy maintenance with building-block Relay Units.
2.Easy identification of operating status with LED operation
indicator.
3.Lineup includes models for tropical regions and for high
temperatures. Achieve stable detection even in hightemperature environments.
CLASSIFICATION | FLOATLESS RELAY | |
| MODEL | 61F-G1 | |
| DIMENSIONS(mm) | 79.5H*84W*127D | |
| SOCKET TYPE | -- | |
SENSING MODE | GENERAL | 61F-G |
| HIGH SENSING | -- | |
| LONG DISTANCE | -- | |
| LOW DENSITY | -- | |
| TWO LINES | -- | |
| RATED VOLYAGE | AC:110V,220V,240V,50/60Hz | |
| INDICATOR OPERATING | Two LED's use for two status | |
| OPERATE VOLYAGE | 85~110% of rated voltage | |
| SECOND VOLTAGE | 8VAC(except high sensing 24VAC) | |
| OPERATE RESISTANCE | 4K Ωmin.(GENERAL) | |
| RELEASE RESISTANCE | 15K Ωmin.(GENERAL) | |
| RESPONSE TIME | Operate:80msec max, Release:160 msec max | |
| CONTACTRATING | 5A, 250VAC(RESISTIVELOAD) | |
| LENGTH OF CABLE | 1Km max.(GENERAL) | |
| LIFE | MECHANICAL | 5*106 times min |
| ELECTRICAL | 105 times min | |
| INSULATION RESISTANCE | 100MΩ(DC 500V) min | |
| DIELECTRIC STRENGTH | 1500VAC, 50/60Hz, for 1 minute | |
| CONSUMED POWER | 3.2VA | |
| AMBIENT TEMPERATURE | -10°c~+55°c | |
| AMBIENT HUMIDITY | 45~85%RH | |
| WEIGHT | 380g | |
PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
